Karmadev (Indo-Nepal Border)-Phukot (Kalikot)

400 KV DOUBLE CIRCUIT KARNALI CORRIDOR TRANSMISSION LINE

Location of 400/132 kV Phukot Substation

Jade Consult, in association with POWERGRID Corporation of India Ltd., has successfully completed the Detailed Engineering Design and Environmental Study for a 400 kV transmission line spanning 120 km, along with the design of the 400/132 kV Phukot and Betan Substations. The infrastructure is designed to support a current carrying capacity of 2500 MW, playing a critical role in strengthening regional power transmission and enhancing grid reliability.

Client : Rastriya Prasaran Grid Company Ltd. (RPGCL)

Funding Agency: Government of Nepal (GoN)

Scope of Works : Inception Report, Detail Survey of Transmission Lines, Soil Exploration, Environment and Social Assessment, Detail Design of Transmission Lines, Detail Design of Substation, Preparation of Construction Plan, Bidding Documents & Cost Estimates

Project Cost Estimate and Economic/Financial analysis, Project Features: Length – approx. 120 km, Voltage Level – 400 kV Double Circuit, Tower – Steel lattice towers, Conductor – ACSR Quad “MOOSE”, Substations – 2 nos., 400/132 kV GIS Phukot and Betan Substation, Province – Karnali and Sudurpaschim, District – Kalikot, Achham, Surkhet and Kailali

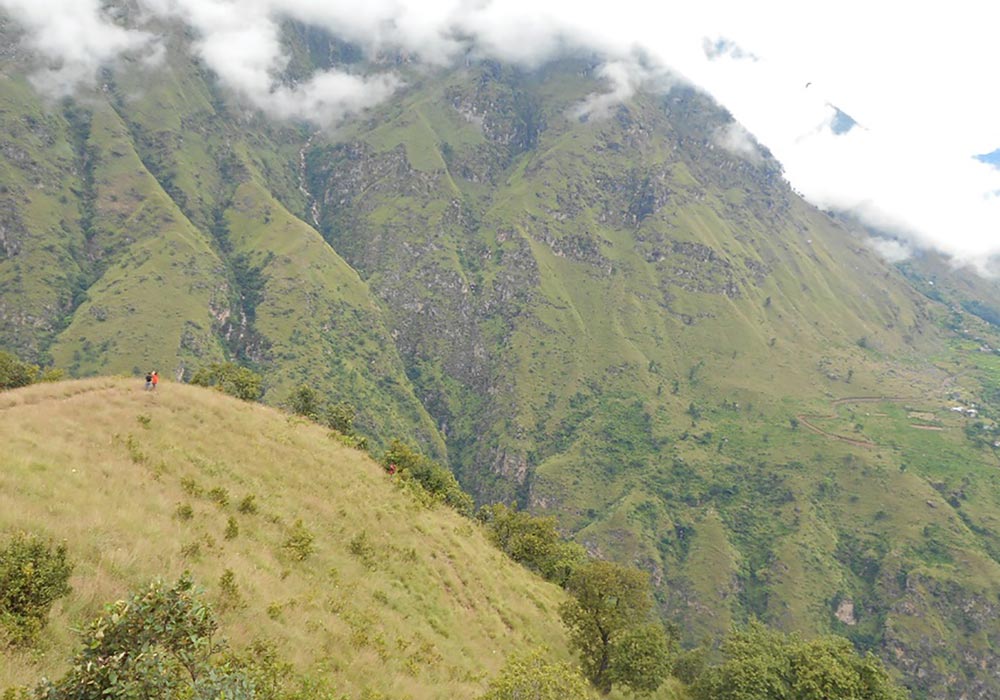

Inset top : Terrain of transmission Line route

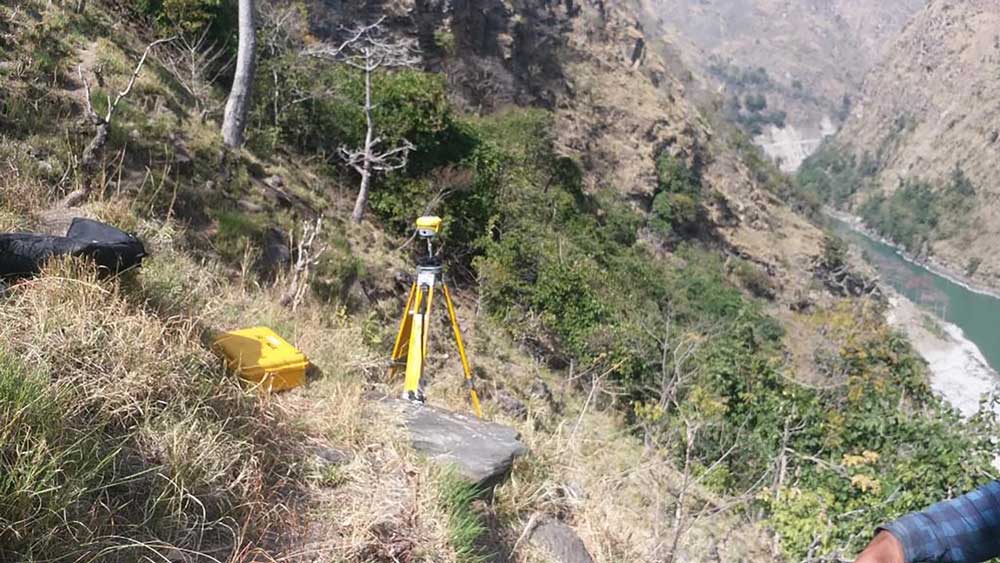

DGPS Survey Works
